High Diffusion Espresso Shower Screen 54mm - Breville
$104.50 AUD $77.00 AUD
Sale 26.32% $27.50 AUD (26.32%)
Tax included. Shipping calculated at checkout.
In stock: 43
  • 18-channel diffusion pattern for even water distribution
  • 304 stainless steel, 2.6mm thick
  • Direct fit, no modification required
  • Free 0.2mm contact mesh
Description

Most factory shower screens send water wherever the path is easiest, not where it's needed. This one spreads it evenly, every time.

Precision water flow for perfectly even extractions, on every Breville 54mm machine.

High Diffusion Espresso Shower Screen 54mm - Breville
THE 54HD SET

Precision water flow for perfectly even extractions.

The 54HD set replaces the stock Breville 54mm shower screen with a machined stainless steel screen carrying 18 targeted channels. Removes the micro channelling that irregular water diffusion creates, giving you the same starting conditions on every shot.

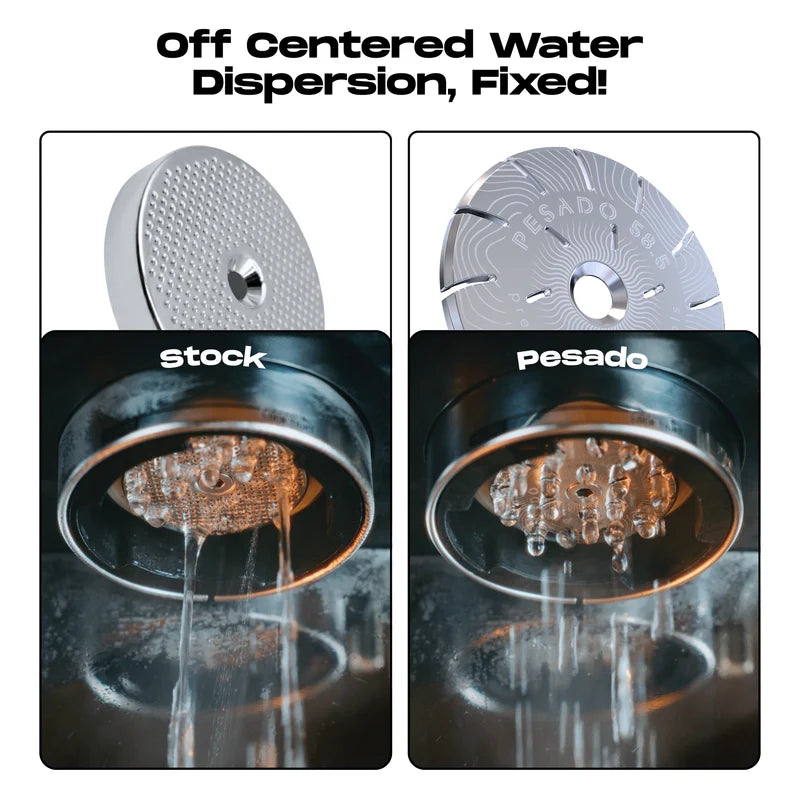

STOCK VS HD HIGH DIFFUSION

Breville 54mm, side by side

The stock 54mm screen is a basket shaped mesh with no way to direct where water lands. Water grips the mesh, bundles into a few thick streams and takes a different path every time. The 54HD screen uses integrated channels to hit the same points on the puck, shot after shot.

A circular metallic coffee grinder burr with a textured gray finish and white engraved text reading 'PESADO 58.5' and 'precision coffee tools', shown on a plain white background. 54MM HD
STOCK

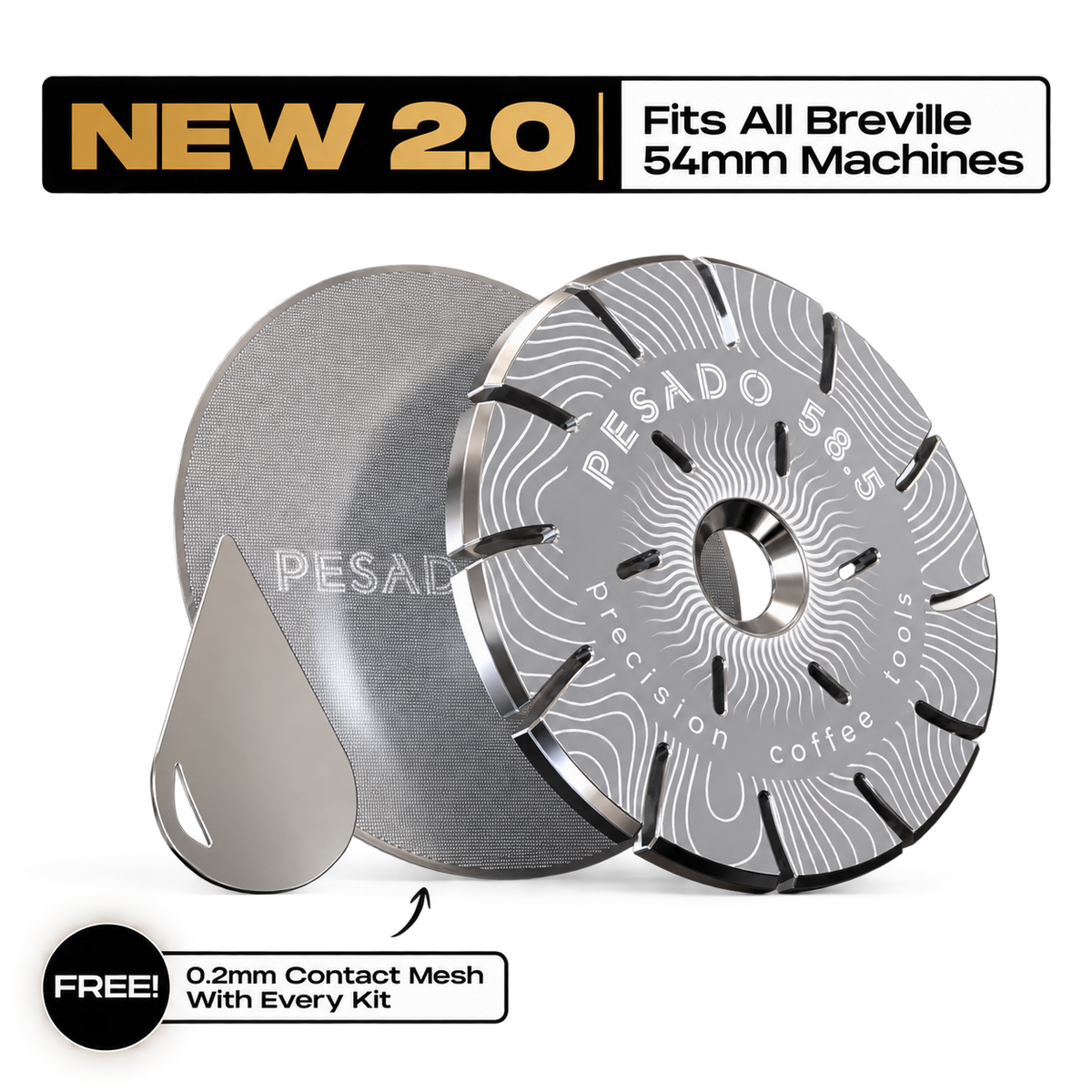

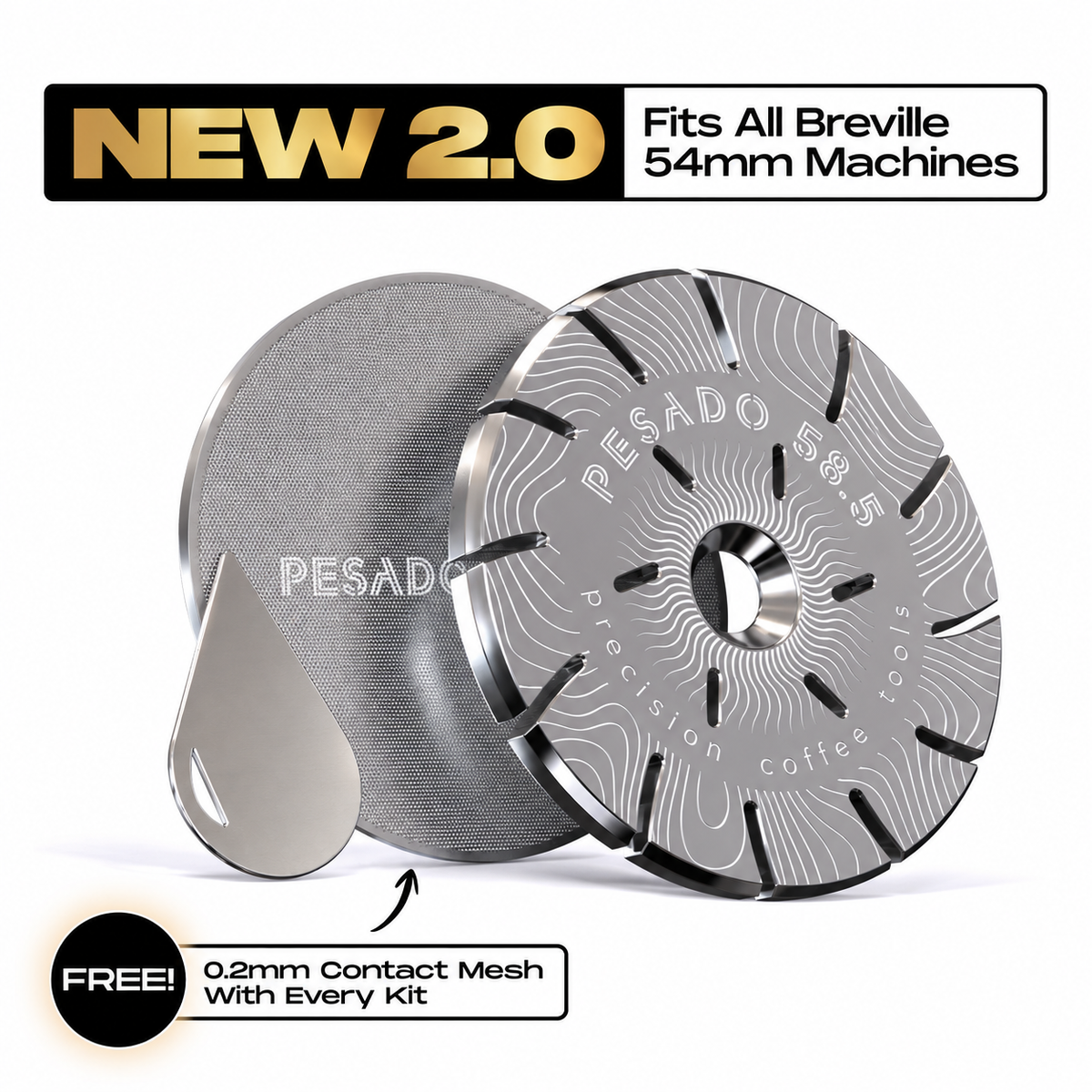

54mm Breville HD 2.0

One screen for every Breville 54mm machine.

The 2.0 revision carries a redesigned integrated channel layout, which is what finally makes a single 54mm screen work across the whole Breville lineup.

  • Corrects off-center water dispersion: New diffusion disc squares up the off centre flow built into the Barista Express, Infuser and Duo-Temp group heads.

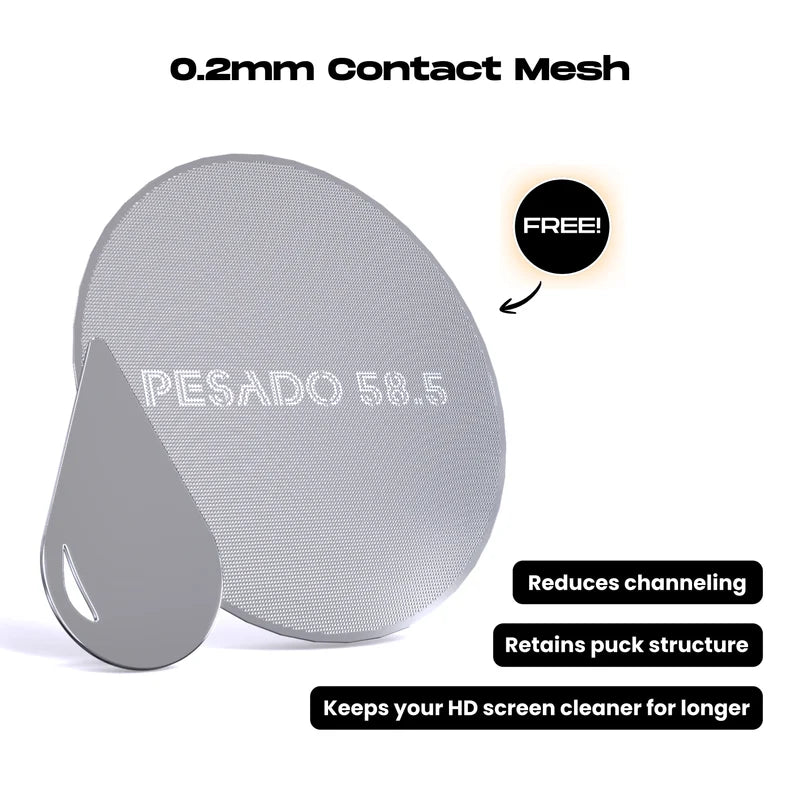

  • Free 0.2mm contact mesh: Sits on top of the puck to hold its structure through pre infusion, reducing channelling and keeping the screen cleaner between pulls.
The mechanics

How the high diffusion shower screen works

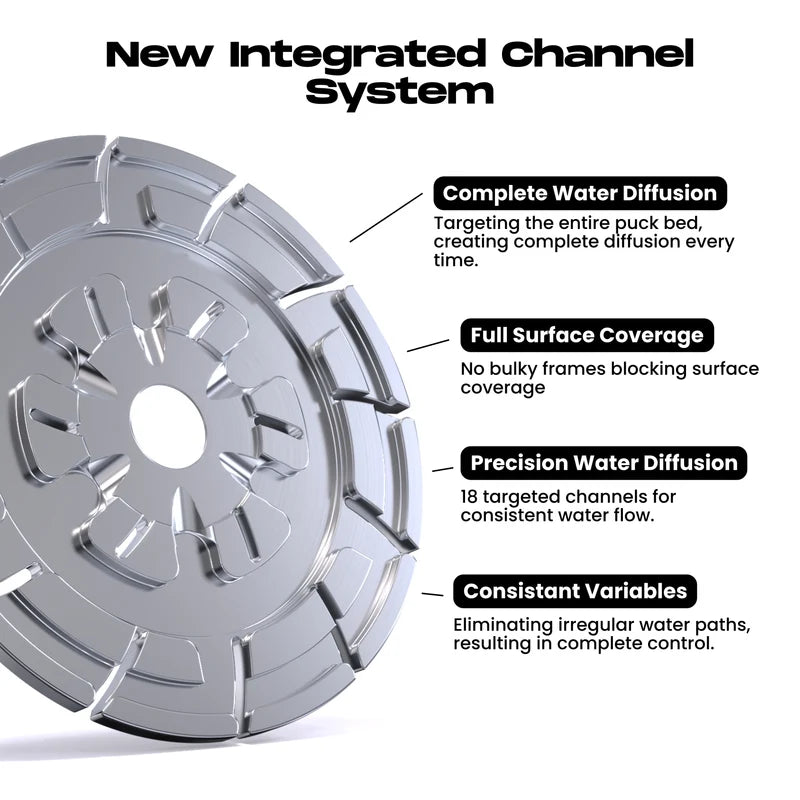

18 targeted channels

Machined from solid stainless steel, the eighteen channels give you control over where water goes, rather than leaving it to whichever path the mesh offers that morning.

Regular water flow

A stock Breville 54mm screen catches water in a basket shaped mesh and lets it diffuse out on its own. In practice it bundles into two to four thick streams that punch into the puck and cause excess channelling.

High diffusion water flow

The HD screen sends water down defined channels to the same points every extraction, spreading it outwards across the whole bed, evenly. The outer channels run all the way to the edge so water exits into the basket wall.

Full puck coverage

Most screens don't cover the whole puck, leaving a ring of dry perimeter. The HD screen uses channels that run to the edge to saturate the whole bed at once.
Technical details
Material
304 stainless steel
Basket compatibility
Double-shot baskets only
Thickness
2.6mm
Diameter
53mm

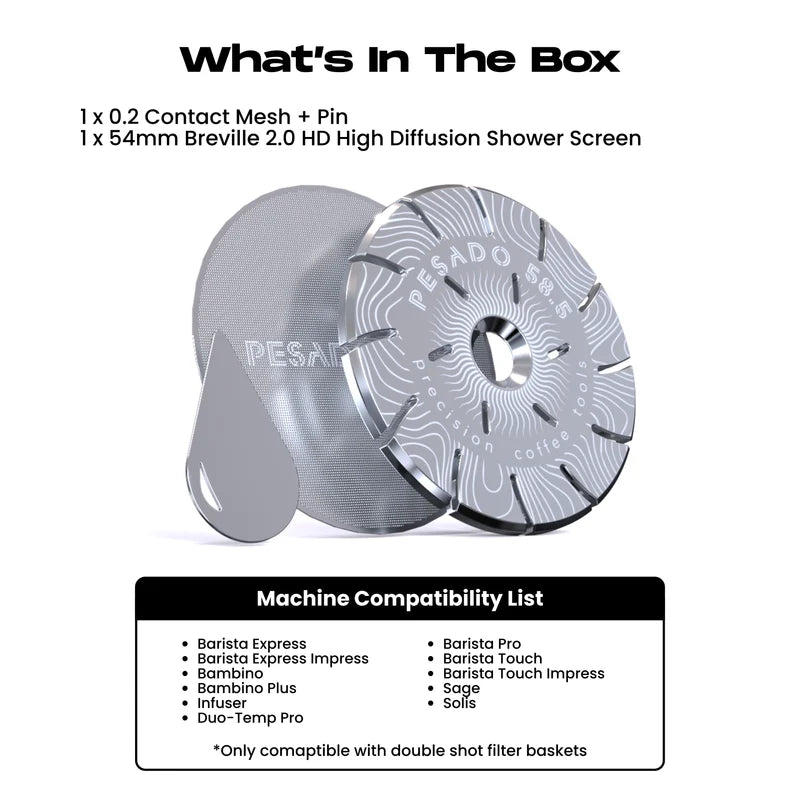

What Comes In The 54HD Set:

  • 1 x 54mm HD High Diffusion Shower Screen
  • 1 x 0.2mm Contact Mesh + Pin
Fits your machine

Fits any Breville machine running a genuine 54mm portafilter:
  • Bambino and Bambino Plus
  • Barista Express
  • Barista Express Impress (manual dosing recommended)
  • Barista Pro
  • Barista Touch
  • Barista Touch Impress (manual dosing recommended)
  • Duo-Temp Pro
  • Infuser
  • Sage 54mm models
  • Solis

For double baskets only. Not compatible with Breville 54mm single baskets.

Own a Dual Boiler, Oracle, or Oracle Touch? Those take our 58mm shower screen instead.
HOW TO INSTALL

Fitted in under two minutes

  1. Unscrew the centre shower screw and detach the existing screen from the group head.
  2. Clean any residue off the group head. A full backflush before first use is recommended.
  3. Fit the 54HD screen using your current shower screw, and you are ready to pull a shot.

Watch the walkthrough for install and dial in tips on Breville 54mm machines.

QUESTIONS

Frequently asked questions

Contact our team

A stock Breville 54mm screen uses a basket shaped mesh that catches the water and lets it find its own way out. The path changes from shot to shot, which usually means two to four thick streams landing in the same weak spots and breaking the puck.

The HD screen replaces that with 18 machined channels. Water is directed to the same points across the puck on every extraction, so diffusion is even and repeatable.

All Breville and Sage 54mm group head machines:

  • Bambino and Bambino Plus
  • Barista Express
  • Barista Express Impress (manual dosing recommended)
  • Barista Pro
  • Barista Touch
  • Barista Touch Impress (manual dosing recommended)
  • Duo-Temp Pro
  • Infuser
  • Sage 54mm models
  • Solis

Please note the BR54HD is not compatible with Breville 54mm single baskets. It is recommended for use with double baskets only. If you have a 58mm machine such as the Dual Boiler, Oracle or Oracle Touch, you need the 58mm version instead.

  • Size: Breville 54mm
  • Thickness: 2.6mm
  • Diameter: 53mm
  • Holes: 18 channels
  • Material: 304 stainless steel
  1. Unscrew the centre shower screw and remove the existing screen from the group head.
  2. Clean any residue off the group head. A full backflush before first use is recommended.
  3. Fit the 54HD screen using your existing shower screw and tighten by hand.

The whole job takes about two minutes. Installation video linked further up the page.

The contact mesh sits on top of the puck and holds its structure through pre infusion, which cuts down on channelling and improves diffusion. It also keeps grounds off the screen itself, so there is less to clean between shots. One mesh and locating pin is included in every set.

Day to day, run a cleaning brush across the face and channels to keep coffee grounds clear. Once a week, unscrew the screen and wash the plate and screw under running water. That is enough to stop buildup and keep water flowing evenly on every shot.
